Representative configurationPneumatic Ball Valves

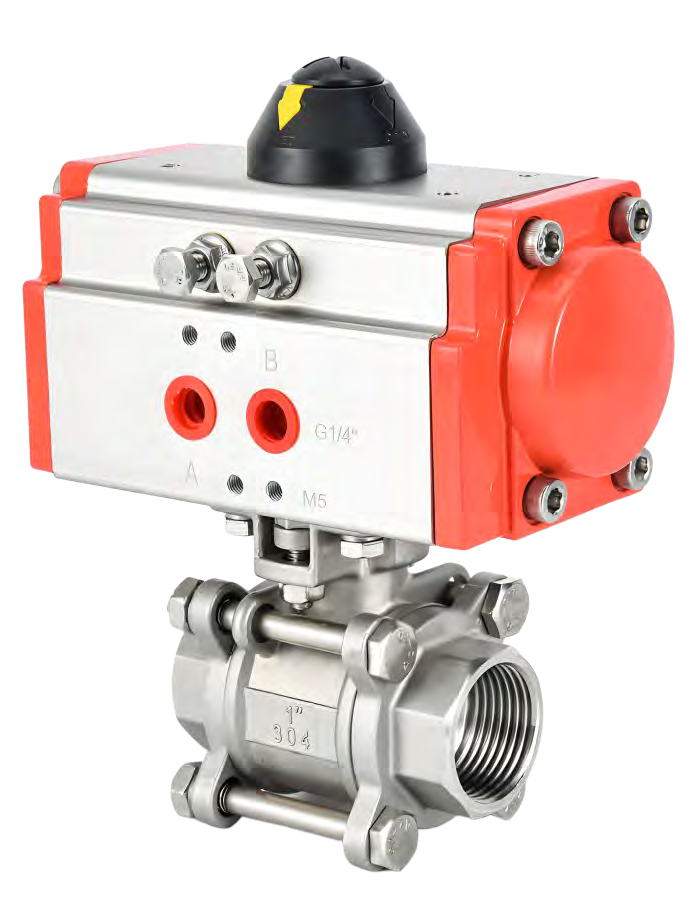

Pneumatic Three-Piece Ball Valve
A three-piece ball valve separates the central valve body from its end connectors.
View ProductSHE / PRODUCT PORTFOLIO
Valves & Actuators
Explore electric and pneumatic actuators, automated ball and butterfly valves, angle-seat valves and control accessories. Compare product families and specify the configuration for your process.
36 products
Representative configuration
Representative configurationPneumatic Ball Valves

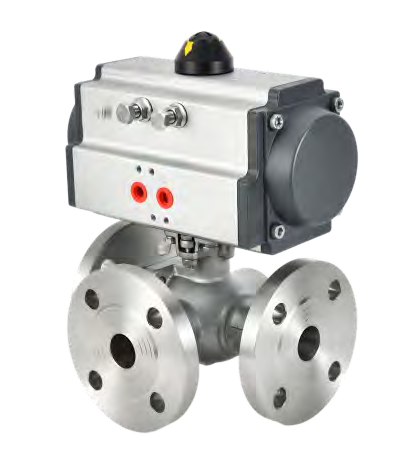

Pneumatic Three-Way Ball Valve
A pneumatic three-way ball valve switches or combines flow paths using a multi-port ball.
View Product
Representative configurationPneumatic Butterfly Valves

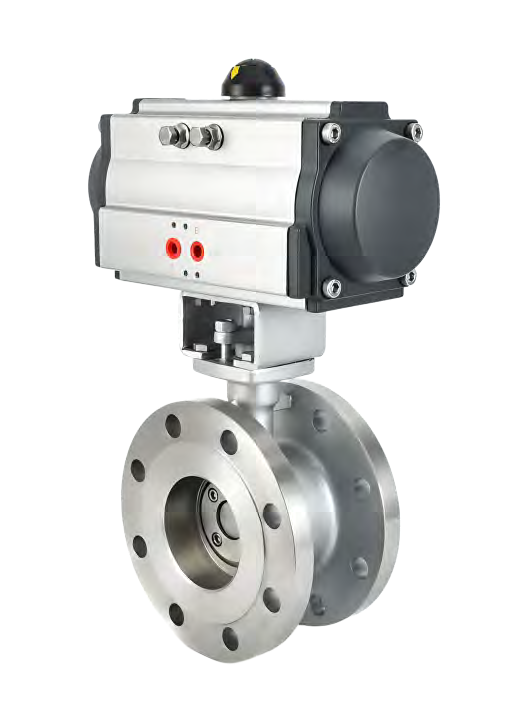

Pneumatic Triple-Offset Butterfly Valve
A triple-offset butterfly valve uses offset geometry in the shaft and seating arrangement to establish its closing action.
View Product
Representative configurationPneumatic Ball Valves
Pneumatic V-Port Ball Valve
A V-port ball valve uses a shaped opening to vary the effective flow area as the ball turns.
View Product
Representative configurationPneumatic Butterfly Valves

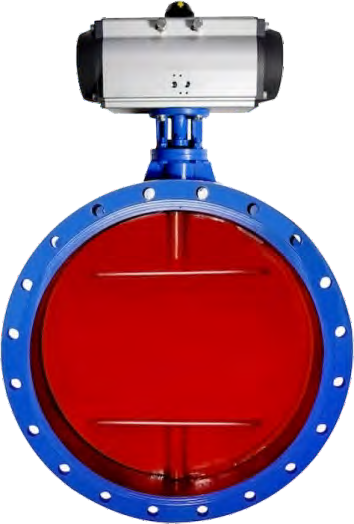

Pneumatic Ventilation Butterfly Valve
A pneumatic ventilation butterfly valve rotates a disc within a duct or low-pressure gas passage.
View Product
Representative configurationPneumatic Actuators
Rack and Pinion Pneumatic Valve Actuator
Compressed-air rotary actuation using a rack-and-pinion mechanism. Review valve torque, minimum available air pressure, required travel and loss-of-air response for the proposed…
View Product
Representative configurationPneumatic Actuators
Three-Position Pneumatic Actuator
A three-position pneumatic actuator provides two end positions and a mechanically controlled intermediate position.
View Product
Representative configurationValve Automation Accessories

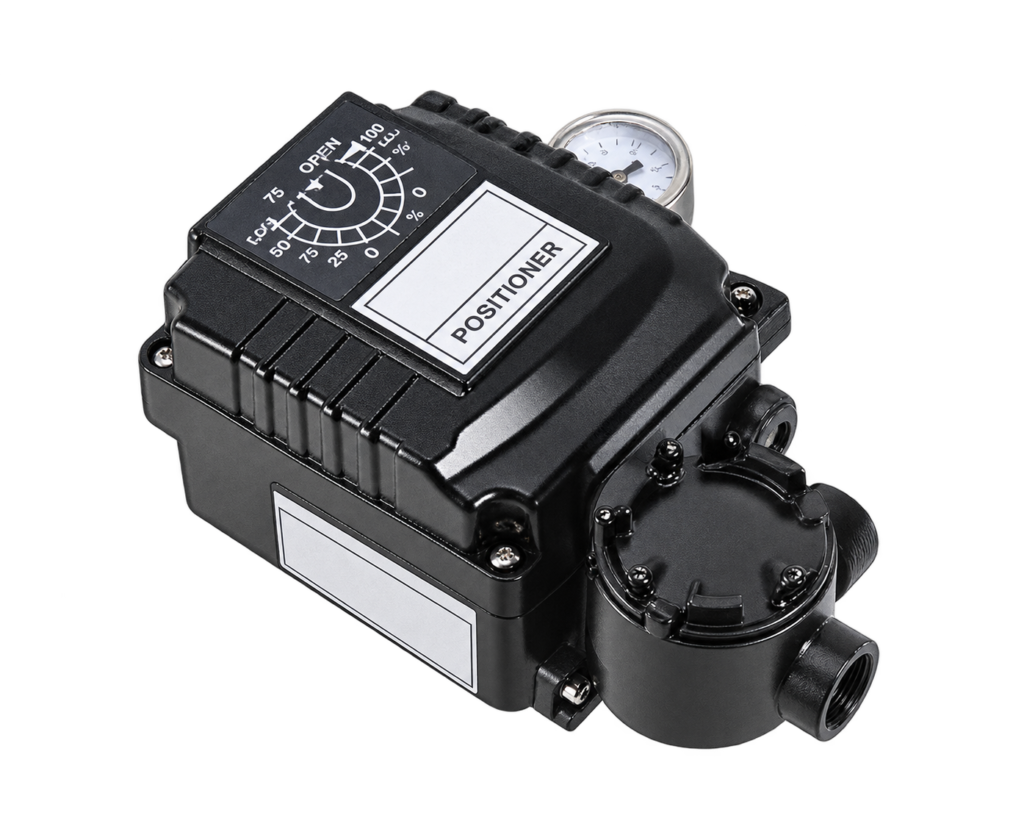

Electro-Pneumatic Valve Positioner
An electro-pneumatic positioner compares a control command with mechanical position feedback and adjusts the air delivered to the actuator.
View Product
Representative configurationValve Automation Accessories
Declutchable Manual Override Gearbox
A declutchable manual override gearbox provides a handwheel drive within a pneumatic valve assembly.
View Product
Representative configurationAngle Seat & Control Valves

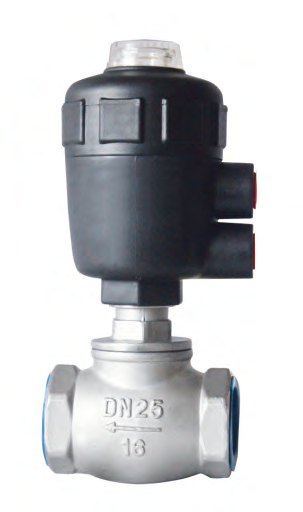

Pneumatic T-Pattern Piston Valve
A T-pattern piston-operated valve places the pneumatic actuator above an in-line valve body.
View Product
Representative configurationValve Automation Accessories
Pneumatic Solenoid Control Valve
A pneumatic solenoid control valve routes instrument air in response to an electrical command.
View Product
Representative configurationValve Automation Accessories
Valve Limit Switch Box
A valve limit switch box reports one or more defined rotary positions to a control system.
View ProductPart-turn electric actuator selection
Part-turn actuators provide rotary travel for valves such as ball and butterfly valves. Match the required travel and output torque before considering the electrical and control options.
- Valve load
- Use the valve torque for the actual pressure, temperature and operating conditions. Check starting, running and seating loads, together with the valve’s allowable torque.
- Travel and mounting
- Provide the travel angle, mounting pattern, shaft dimensions and clearance for installation and manual operation.
- Control and duty
- Define isolation or modulating duty, operating time, movement frequency, supply voltage and required command and feedback signals.
Multi-turn electric actuator selection
Multi-turn actuation delivers more than one output revolution. A gate or globe valve may require both rotational input and control of axial stem load, so the complete drive arrangement matters.
- Torque, thrust and travel
- Provide the valve’s torque or thrust data, total travel and number of output turns. State the stem arrangement and any gearbox or thrust-unit requirements.
- Speed and duty
- Relate the required opening time to output speed and total turns. Include starts per hour and the intended isolation or positioning duty.
- Installation and controls
- Check stem clearance, mounting dimensions, power supply, local controls and remote feedback. Request the correct torque- and travel-setting procedure for the selected assembly.
Pneumatic actuator selection
Pneumatic actuators use compressed air to move a valve. For rack-and-pinion designs, piston movement drives a rotary output shaft. Selection depends on valve load and the air pressure available at the actuator.
- Air supply and torque
- Use the minimum available pressure at the actuator during movement. Ask for the output torque data for the selected arrangement, rather than choosing from the compressor pressure alone.
- Loss-of-air response
- Specify whether the valve should remain in position, open or close. Double-acting and spring-return arrangements behave differently; confirm the full actuator and control circuit.
- Accessories and interface
- Identify the need for a solenoid valve, position indication or positioner. Confirm air connections, mounting details, travel and the required opening and closing times.
Ratings, options and dimensions depend on the selected configuration. Confirm the final datasheet before ordering.
