Pneumatic Sanitary Ball Valve

Product construction and operation

A sanitary-pattern pneumatic ball valve uses smooth tube connections and a rotary ball to provide automated switching in a compatible process line. Two-way and three-way configurations serve different flow-routing requirements, while clamp geometry and tube dimensions determine the mating connection.

Configuration features

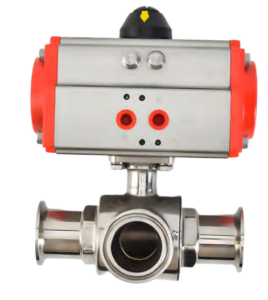

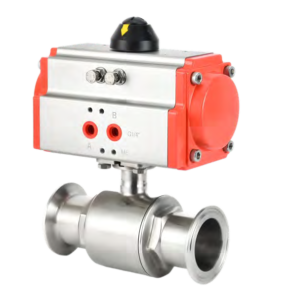

• Two-way isolation and three-way routing versions are represented in the range.
• Clamp connections are selected by tube standard and ferrule dimensions.
• Actuator and bracket clearance must leave access for line disassembly.

Selection and installation details

The word sanitary describes the connection and construction family; it does not by itself establish a hygienic certification or suitability for every food or pharmaceutical process. Define the required surface finish, elastomer or seat grade, cleaning chemicals and cleaning temperature. For three-way versions, provide the port map, drainability requirements and permitted flow direction. Clamp dimensions must be matched rather than inferred from nominal pipe size.

Review supply pressure at the equipment while it is operating, not only the compressor setting. Select accessories and the loss-of-air response for the complete assembly.

Application fit

Compatible process-transfer and cleaning circuits requiring tube-style connections.

Information to include in your enquiry

Include the medium, normal and maximum pressure and temperature, connection dimensions, required operating time and quantity. For an existing installation, add identification photographs and the current assembly drawing.

Confirm the final assembly drawing, materials, ratings and control documentation for the proposed configuration before ordering. Product photographs show representative configurations.

Browse Pneumatic Ball Valves, use the actuator sizing checklist, or send your application requirements.
