Instrument Air Filter Regulator

Product construction and operation

An instrument-air filter regulator removes collected contamination and regulates the pressure supplied to pneumatic controls. Depending on the selected assembly, air preparation may also include a lubricator. The correct arrangement follows the actuator and accessory requirements.

Configuration features

• Pressure adjustment and gauge support setup of the local air supply.
• Filter bowl and drain arrangement collect and discharge separated contamination.
• Filter-regulator and filter-regulator-lubricator packages are different configurations.

Selection and installation details

A nominal filtration value does not establish a complete compressed-air quality class. Check moisture, oil carryover and particulate requirements for every downstream device. Select the regulator using the required flow as well as pressure range, because a small unit may show pressure drop during actuator movement. Do not add lubrication unless the actuator and control-device instructions permit or require it.

Check both mechanical and control compatibility before installation. A matching exterior or similar part description does not confirm interchangeable ratings, porting or wiring.

Application fit

Local air preparation for pneumatic actuators, solenoid valves and positioners.

Information to include in your enquiry

Identify the actuator or valve, mounting dimensions, control circuit and installation environment. Include the required electrical or pneumatic ratings, quantity and any documentation requirements.

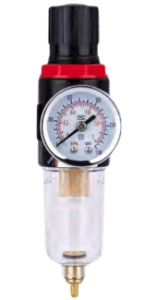

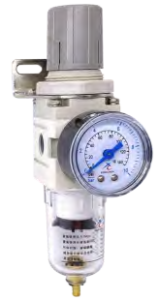

Confirm the final assembly drawing, materials, ratings and control documentation for the proposed configuration before ordering. Product photographs show representative configurations.

Browse Valve Automation Accessories, use the actuator sizing checklist, or send your application requirements.
