Electric Sanitary Ball Valve

Product construction and operation

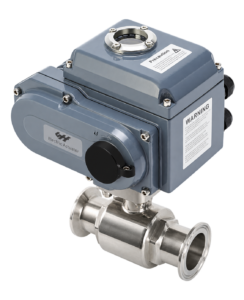

An electric sanitary-pattern ball valve brings motorized operation to tube-connected process piping. The product family includes two-way isolation and three-way routing arrangements; the ball passage, ferrule dimensions and cleaning requirements must be defined for the selected assembly.

Configuration features

• Tube-style clamp connections support a removable piping joint.
• Two-way and three-way layouts address different flow-routing needs.
• Compact electric actuation avoids the need for local instrument air.

Selection and installation details

Provide the tube standard and clamp-ferrule dimensions, not only the pipe diameter. For three-way versions, identify the common port and each required connection state. Review seat materials, drainability, product retention and the cleaning process with the proposed valve documentation. No hygienic certification or cleaning-temperature rating is inferred from the product photograph.

Define the power supply, command signal, position feedback and operating frequency. Confirm the response required after power or signal loss for the selected controls.

Application fit

Compatible tube-connected process lines requiring remote switching or diversion.

Information to include in your enquiry

Include the medium, normal and maximum pressure and temperature, connection dimensions, required operating time and quantity. For an existing installation, add identification photographs and the current assembly drawing.

Confirm the final assembly drawing, materials, ratings and control documentation for the proposed configuration before ordering. Product photographs show representative configurations.

Browse Electric Ball Valves, use the actuator sizing checklist, or send your application requirements.
